Product Details

ARISELED

Item

Parameters

Module
Parameters

Pixel Pitch

3.33 mm

Pixel Density

90000 Pixels/m2

Pixel Composition

RGB 3 in1

LED Specification

SMD 1820, SMD 1921

Module Resolution

96*48 Pixels; 96*48 Pixels

Module SizeW×H

320mmx160mm; 160x160mm

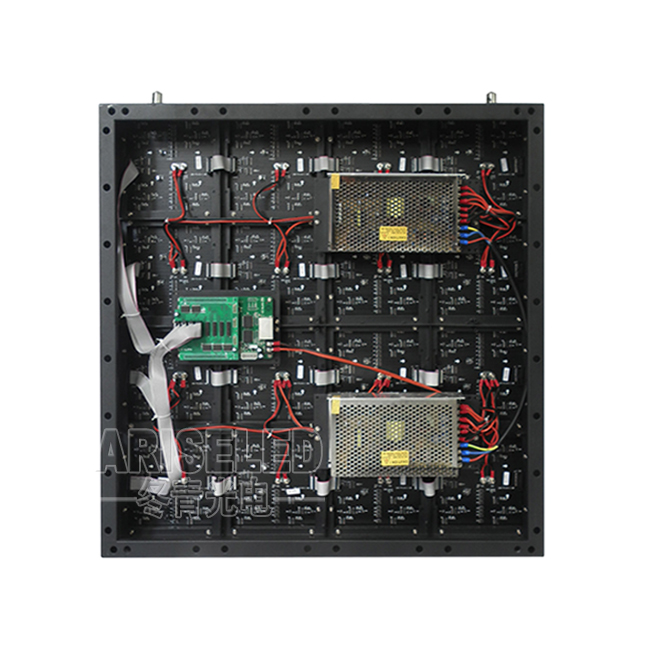

Cabinet
Parameters

Cabinet Type

Steel (Aluminum optional)

Cabinet Flatness

≤0.5mm

Cabinet Dimension (W*H*Thickness)

640mm*640mm*80-150mm
(Cabinet size can be customized.)

Cabinet Resolution

192*192 Pixels

Cabinet Area

0.4096 m2

Weight/m2

45 kg/m2 (Steel Cabinet)
30 kg/m2(Aluminum Cabinet)

Serviceability

Front/Back

IP Rating

IP 65

Optical
Parameters

White Balance Brightness

≥6000cd/m

Color Temperature

3200~9300K Adjustable

Color Processing

14 Bit; 16 Bit

Optimum Viewing Distance

≥3.33 m

Horizontal Viewing Angle

160° (min 50% brightness)

Vertical Viewing Angle

120° (min 50% brightness)

Luminance uniformity

≥97%

Color Uniformity

±0.005Cx,Cy

Contrast

5000:1

Electrical
Parameters

Max. Power Consumption

990W/m2

Ave. Power Consumption

330W/m2

Input Voltage

100v--240v(47--63Hz)
200v--240v(47--63Hz)

Output Voltage

DC 5V

Processing
Performance

Driving Mode

Constant Current Drive
1/12 Scan

Frame Frequency

50&60 Hz

Refresh Rate

≥1000Hz/ 2000 Hz

Control Way

Synchronous
(Asynchronous optional)

Usage
Parameters

Typical Life Values

100,000 Hrs

Working Temperature Range

 -20 ~ +50°C

Storage Temperature Range

 -40 ~ +60°C

Working Humidity Range

10~95% (RH)

Storage Humidity Range

10~95%  (RH)

The specifications above are for reference only and subject to change without prior notice, please feel free to contact us for specific projects.
