Product Details



Item

Parameters

Parameters

Module
Parameters

Pixel Pitch

5 mm (indoor)
5 mm (outdoor)

6.67 mm (Outdoor)

Pixel Density

40000 Pixels/m2

22500 Pixels/m2

Pixel Composition

RGB 3 in1

RGB 3 in1

LED Specification

SMD 3528

SMD 2727


SMD 3535

Module Resolution

64*32 Pixels

48*24 Pixels

Module SizeW×H

320mmx160mm

320mmx160mm

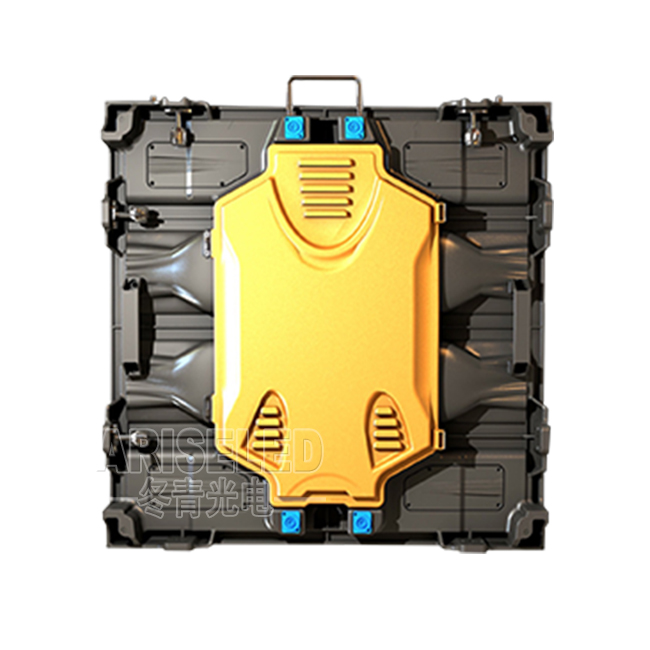

Cabinet
Parameters

Cabinet Type

Die-cast Aluminum Cabinet
Extruded Aluminum Cabinet

Die-cast Aluminum Cabinet
Extruded Aluminum Cabinet

Cabinet Flatness

≤0.2mm

≤0.2mm

Cabinet Dimension (W*H)

640mm*640mm

640mm*640mm

Cabinet Resolution

128*128 Pixels

96*96 Pixels

Cabinet Area

0.4096 m2

0.4096 m2

Cabinet Weight

12.5 kg
13 kg

14 kg

Serviceability

Back

Back

IP Rating

IP43, Indoor
IP65, Outdoor

IP65, Outdoor

Optical
Parameters

White Balance Brightness

≥1500cd/m
≥6000cd/m2

≥6000cd/m

Color Temperature

3200~9300K Adjustable

3200~9300K Adjustable

Color Processing

14 Bit; 16 Bit

14 Bit; 16 Bit

Optimum Viewing Distance

≥5 m

≥6.6 m

Horizontal Viewing Angle

1600 (min 50% brightness)

1600 (min 50% brightness)

Vertical Viewing Angle

1600 (min 50% brightness)

1600 (min 50% brightness)

Luminance uniformity

≥97%

≥97%

Color Uniformity

±0.005Cx,Cy

±0.005Cx,Cy

Contrast

5500:1

5500:1

Electrical
Parameters

Max. Power Consumption

800 W/m2
 ≥900W/m

690 W/m2

Ave. Power Consumption

270W/m2

≥300W/m2

230 W/m2

Input Voltage

100v--240v(47--63Hz)
200v--240v(47--63Hz)

100v--240v(47--63Hz)
200v--240v(47--63Hz)

Output Voltage

DC 5V

DC 5V

Processing
Performance

Driving Mode

Constant Current Drive

1/16 Scan 1/8 Scan

Constant Current Drive
1/8 Scan

Frame Frequency

50&60 Hz

50&60 Hz

Refresh Rate

≥1200Hz/ 2000 Hz/ 3840Hz

≥1200Hz/ 2000 Hz/ 3840Hz

Control Way

Synchronous

Synchronous

Usage
Parameters

Typical Life Values

100,000 Hrs

100,000 Hrs

Working Temperature Range

 - 20~600C

 - 35~800C

Storage Temperature Range

 - 20~600C

 - 20~600C

Working Humidity Range (RH)

10~95%

10~95%

Storage Humidity Range (RH)

10~95%

10~95%

The specifications above are for reference only and subject to change without prior notice, please feel free to contact us for specific projects.
